Roll Bar Crash Deployment Electrical Tests (Section 19.2/23)

CAUTION: Injury hazard from pinching and crushing, in extreme cases extremities can even be severed when caught in the mechanism. DO NOT allow any body parts to be in the general area of the moving components. DO NOT reach into the moving mechanism at any time during any tests. Keep away from the moving mechanism of components which are being activated using the Hand Held Tester (HHT) and or directly via circuit 30.

NOTE: Before performing any roll bar crash deployment electrical tests, ensure test equipment is properly connected. See CONNECTING ELECTRICAL TEST EQUIPMENT under ELECTRICAL DIAGNOSTIC TESTS (SECTION 23).

Perform testing to determine if nominal values are within specifications. Perform appropriate test when directed to do so from a table. For aid in testing review roll bar crash deployment operation. See ROLL BAR CRASH DEPLOYMENT and ROLL BAR CRASH DEPLOYMENT TROUBLE SHOOTING (SECTION 19.2/13.1) under TROUBLE SHOOTING.

Fig 1: Roll Bar Crash Deployment Electrical Test Program (Steps 1.0-3.1)

G00297076

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 2: Roll Bar Crash Deployment Electrical Test Program (Steps 4.0-4.2)

G00297077

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

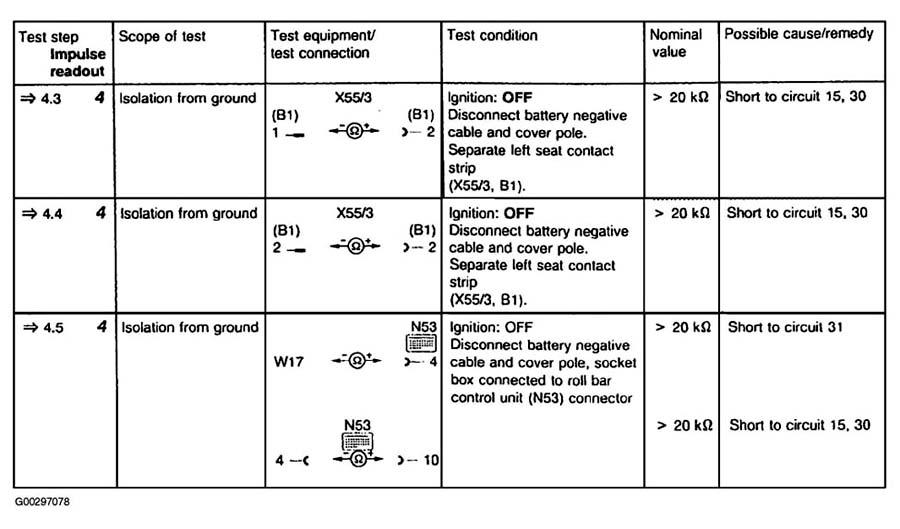

Fig 3: Roll Bar Crash Deployment Electrical Test Program (Steps 4.3-4.5)

G00297078

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Roll Bar Crash Deployment Electrical Test Program (Steps 4.6-5.4)

G00305800

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

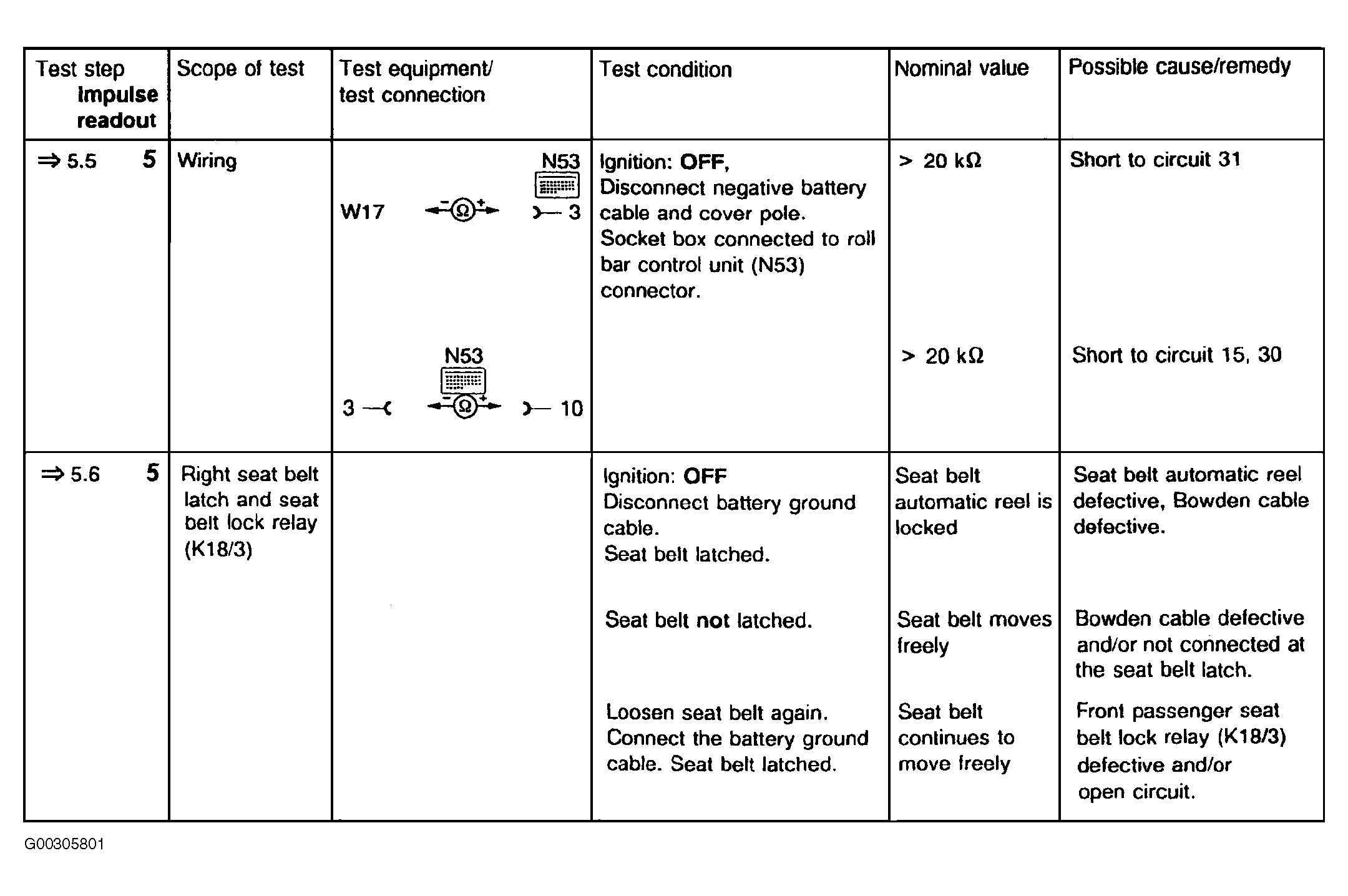

Fig 5: Roll Bar Crash Deployment Electrical Test Program (Steps 5.5-5.6)

G00305801

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Roll Bar Crash Deployment Electrical Test Program (Steps 6.0-6.2)

G00297080

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Roll Bar Crash Deployment Electrical Test Program (Steps 7.0-7.3)

G00297081

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Roll Bar Crash Deployment Electrical Test Program (Steps 7.4-8.0)

G00297082

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

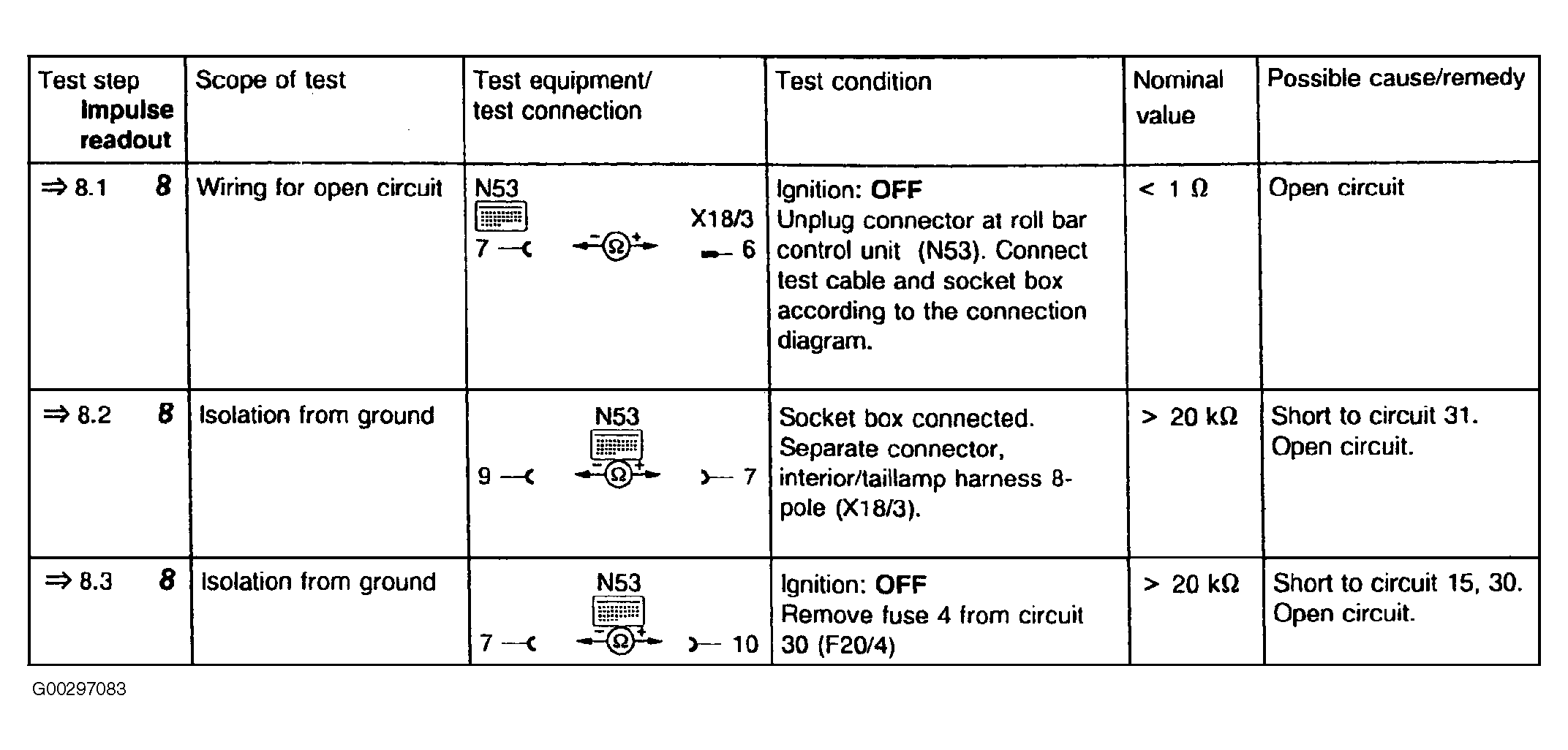

Fig 9: Roll Bar Crash Deployment Electrical Test Program (Steps 8.1-8.3)

G00297083

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

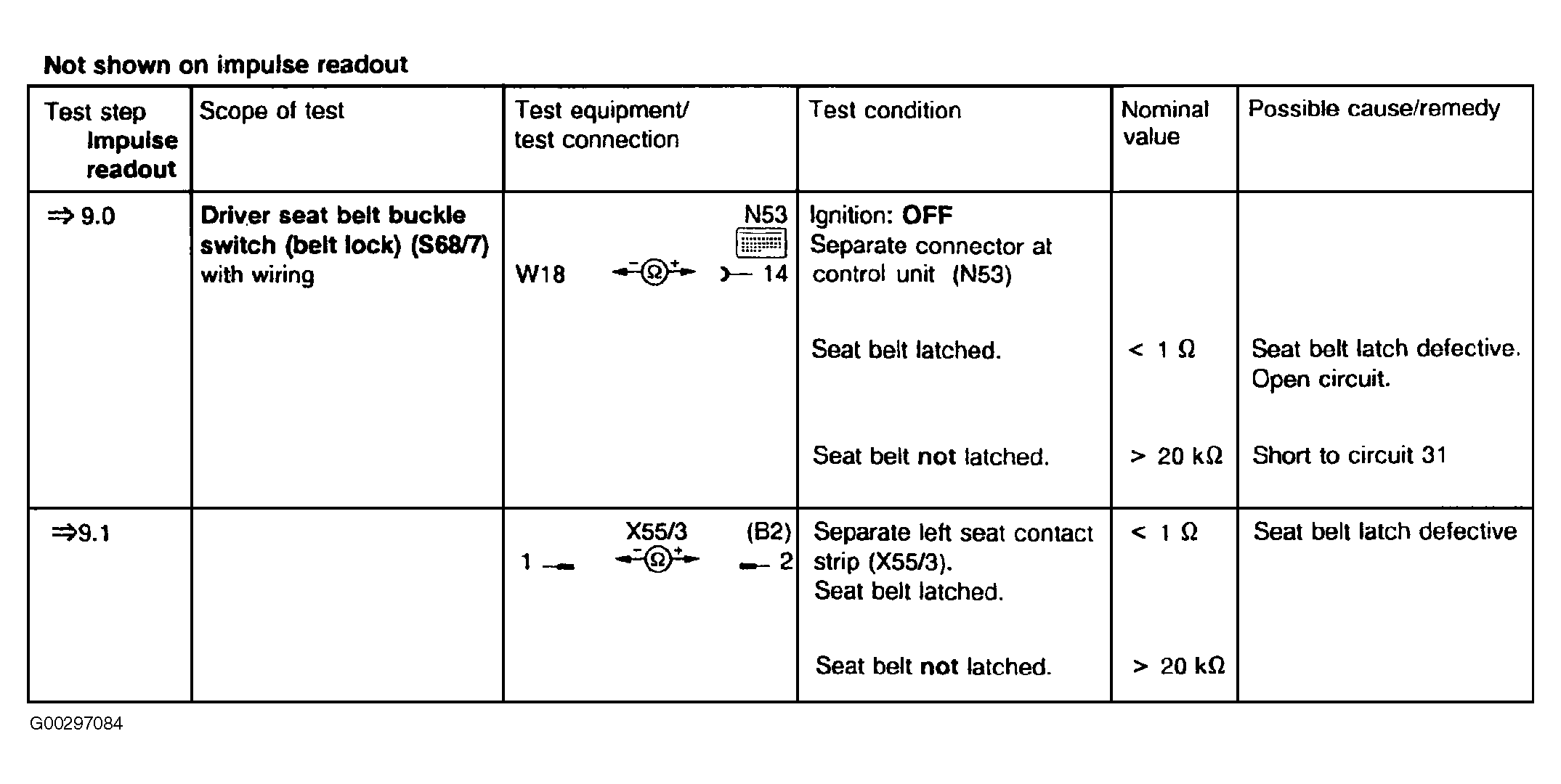

Fig 10: Roll Bar Crash Deployment Electrical Test Program (Steps 9.0-9.1)

G00297084

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

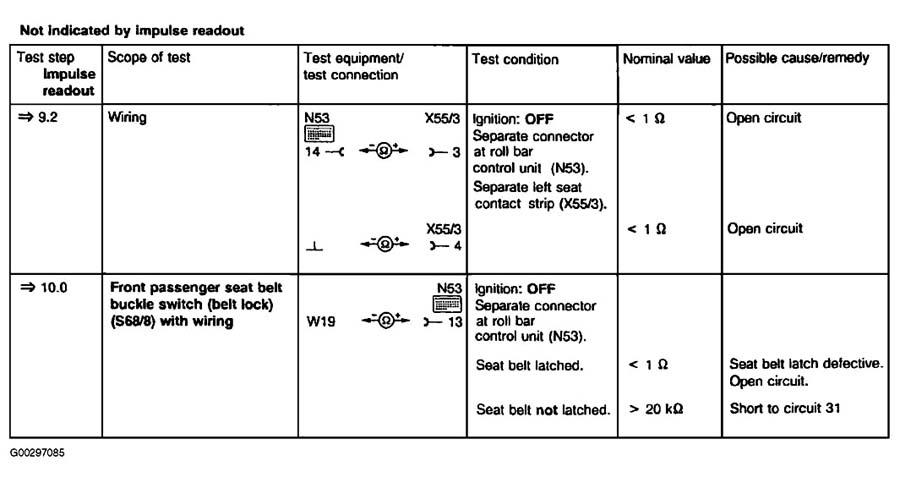

Fig 11: Roll Bar Crash Deployment Electrical Test Program (Steps 9.2-10.0)

G00297085

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

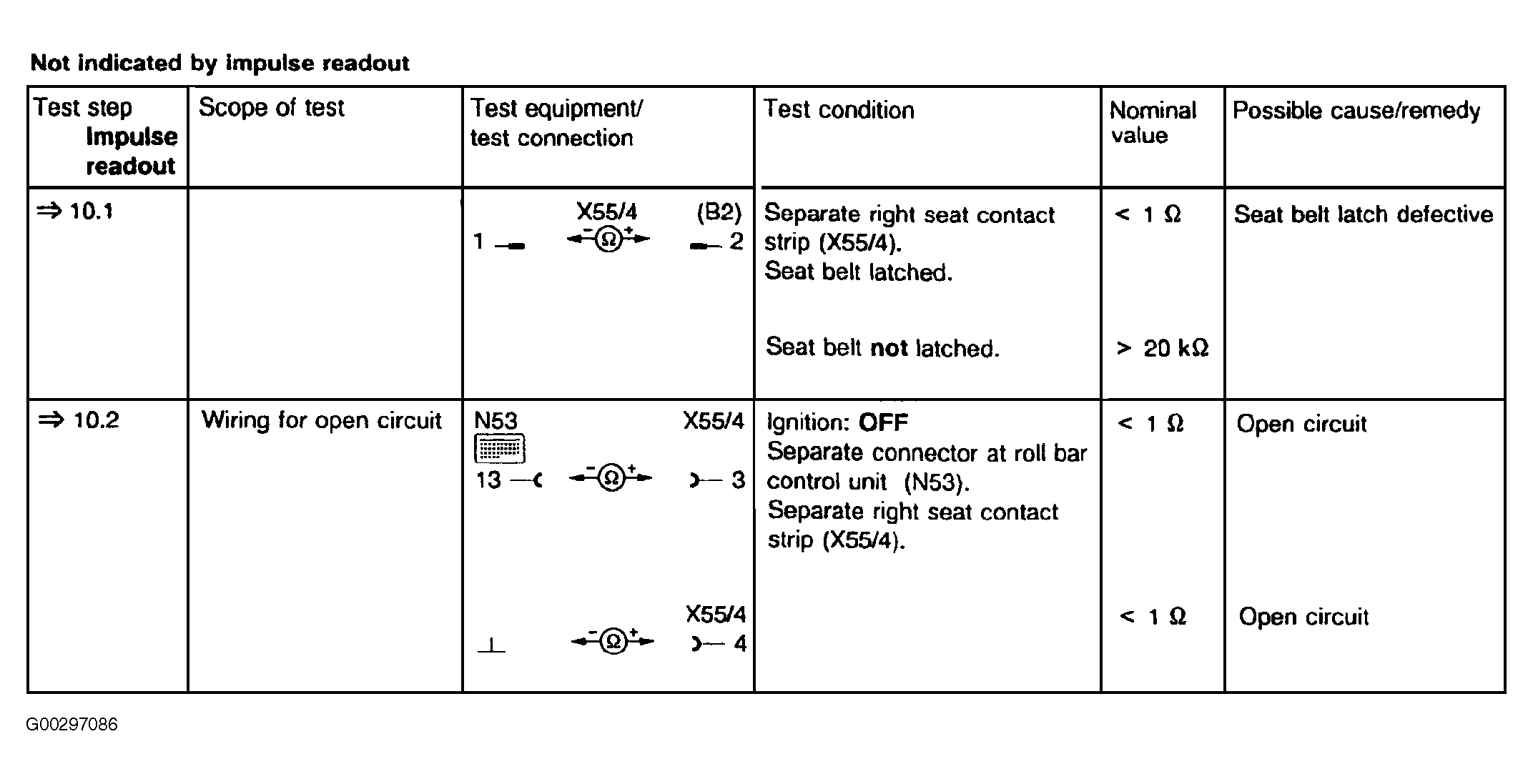

Fig 12: Roll Bar Crash Deployment Electrical Test Program (Steps 10.1-10.2)

G00297086

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
