Water pump drive belt installation note

WARNING: This page is about a different variant/trim than selected.

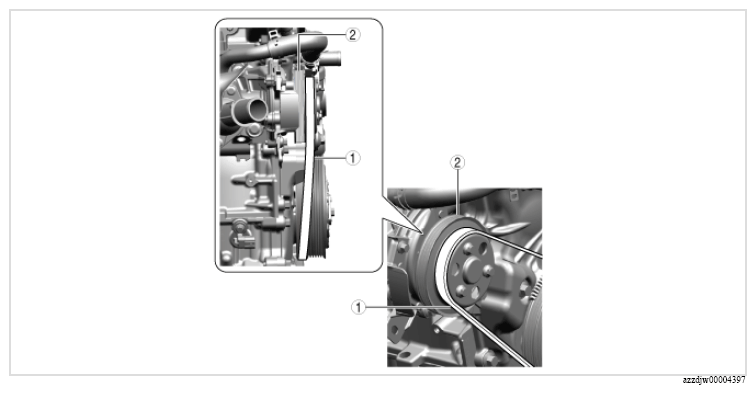

  1. Set one side of the water pump drive belt in the groove of the crankshaft pulley.
  2. Set the other side of the water pump drive belt in the step of the water pump pulley.
    G16691993Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no. Refer to
    1 Water Pump Drive Belt
    2 Water pump pulley

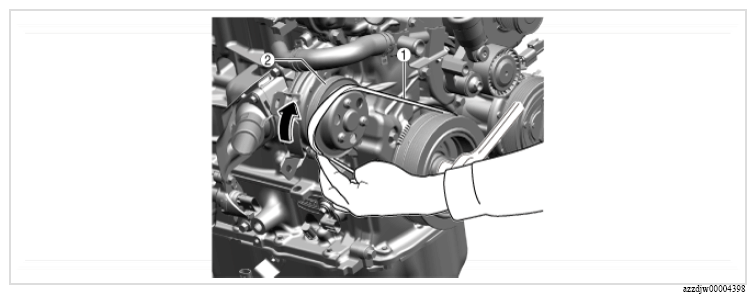

  3. Pushing up the belt so that it is fitted in from the step of the water pump pulley to the groove of the pulley, rotate the crankshaft pulley clockwise.
    G16691994Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no. Refer to
    1 Water Pump Drive Belt
    2 Water pump pulley
  4. After the belt is installed, rotate the crankshaft pulley clockwise approx. 180° and verify that the water pump drive belt is installed correctly.
    • If the belt ribs and the pulley grooves are not engaged correctly, remove the belt and reinstall it.
