Shroud upper member removal note

WARNING: This page is about a different variant/trim than selected.

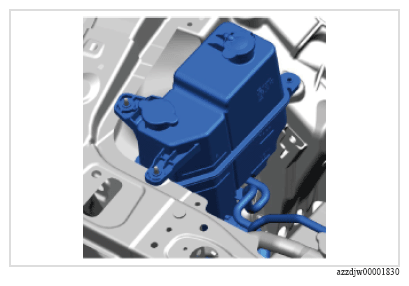

  1. Move the coolant reserve tank aside until the shroud upper member can be removed.
    G16691951Courtesy of MAZDA MOTORS CORP.
  2. Remove the shroud upper member.
