Remove Radiator: Notes
WARNING: This page is about a different variant/trim than selected.

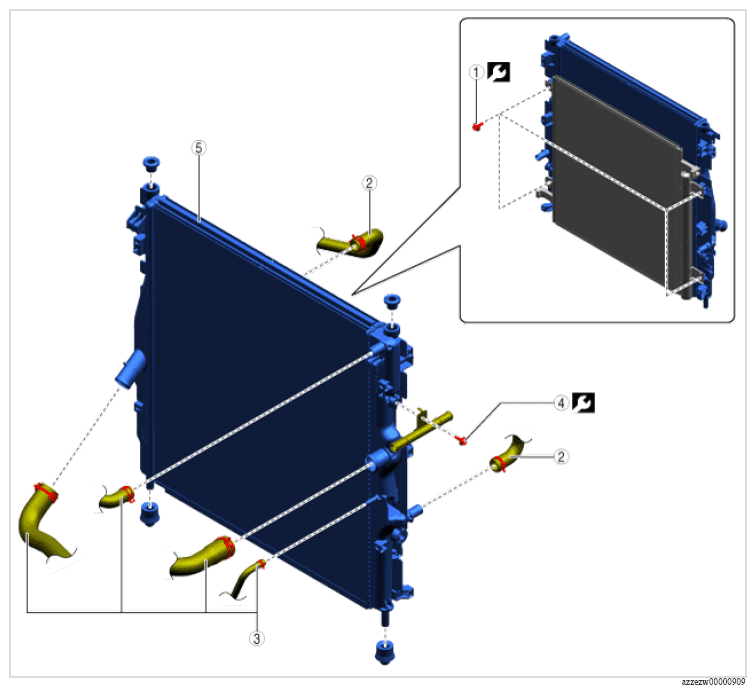

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Bolt (See BOLT REMOVAL NOTE ) |
8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 2 | Hose | - |
| 3 | Hose | - |
| 4 | Bolt | 8.5 N.m {85 kgf.cm, 74 in.lbf} |
| 5 | Radiator | - |
