Remove Intake Air Guide (Lower): Notes
WARNING: This page is about a different variant/trim than selected.

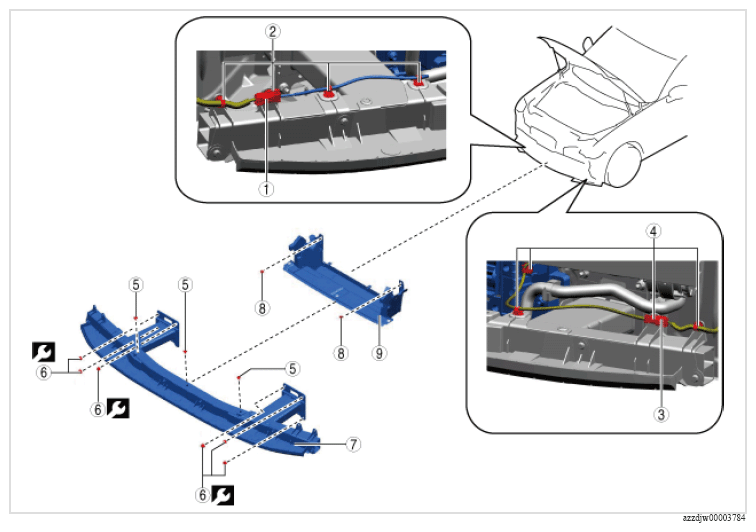

- Remove using the procedure shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | Applicable condition | |
|---|---|---|---|
| 1 | Connector | With active air shutter | - |
| 2 | Wiring harness clip (See Wiring harness clip removal note ). |
With active air shutter | - |
| 3 | Connector | e-SKYACTIV PHEV | - |
| 4 | Wiring harness clip (See Wiring harness clip removal note ). |
e-SKYACTIV PHEV | - |
| 5 | Fastener | - | - |
| 6 | Nut | - | 14.5 N.m {1.5 kgf.m, 10.75 ft.lbf} |
| 7 | Front cross-member extension assembly | - | - |
| 8 | Fastener | - | - |
| 9 | Intake air guide (lower) (See Intake air guide (lower) removal note ). |
- | - |
