Intake air guide (upper) removal note
Intake air guide (upper) removal note
WARNING:
This page is about a different variant/trim than selected.

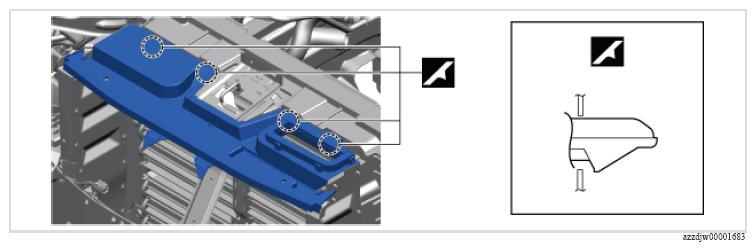

Remove the intake air guide (upper) as shown in the figure.
Courtesy of MAZDA MOTORS CORP.
