Inspect Coolant Concentration

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Use coolant at a concentration that meets the environmental conditions in which the vehicle is driven, otherwise engine damage could occur.

NOTE:

For vehicles with an [FL22] mark on or near the cooling system cap, use genuine long-life coolant (golden).

Courtesy of MAZDA MOTORS CORP.

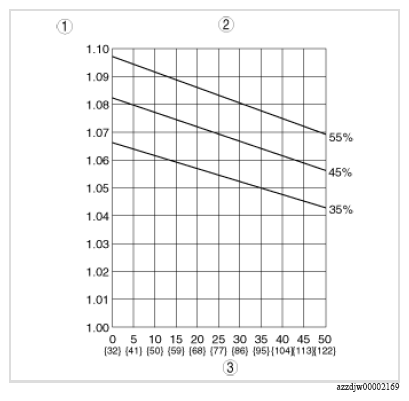

Measure the concentration of coolant using a hydrometer and thermometer and verify that it is as indicated in the graph.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no.	Refer to
1	Specific gravity
2	Coolant protection function (Except FL22 type)
3	Coolant temperature (°C {°F})
