Front over fender upper removal note

WARNING: This page is about a different variant/trim than selected.
  1. Apply protective tape to the location shown in the figure to prevent scratches or damage.
    • The figure shows the left side (same as right side).
    G16699200Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    Protective tape attachment positions

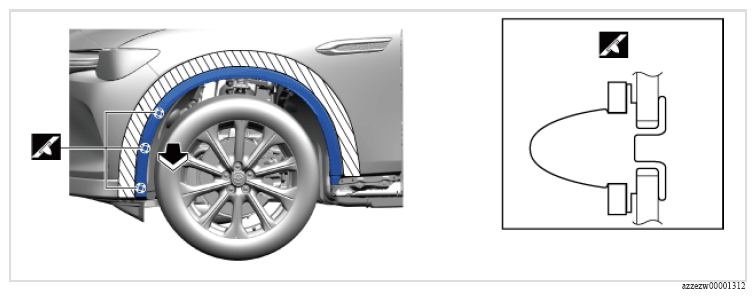

  2. Pull the front over fender upper in the direction of the arrow shown in the figure and detach the clips from the front bumper.
    • The figure shows the left side (same as right side).
    G16691853Courtesy of MAZDA MOTORS CORP.

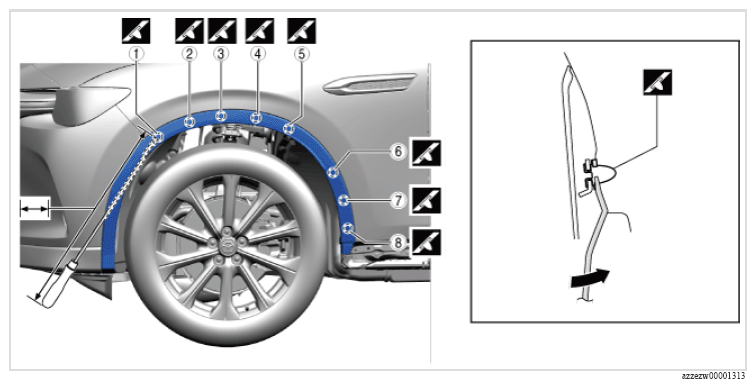

  3. Using a tape-wrapped fastener remover, move it in the direction of the arrow shown in the figure and detach the clips from the body.
    • The figure shows the left side (same as right side).
    G16691854Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    300 mm {1.18 in} or more
    (1) (2)... Servicing procedure
  4. Remove the front over fender upper.
