Remove Coolant Switching Valve No. 1
WARNING: This page is about a different variant/trim than selected.

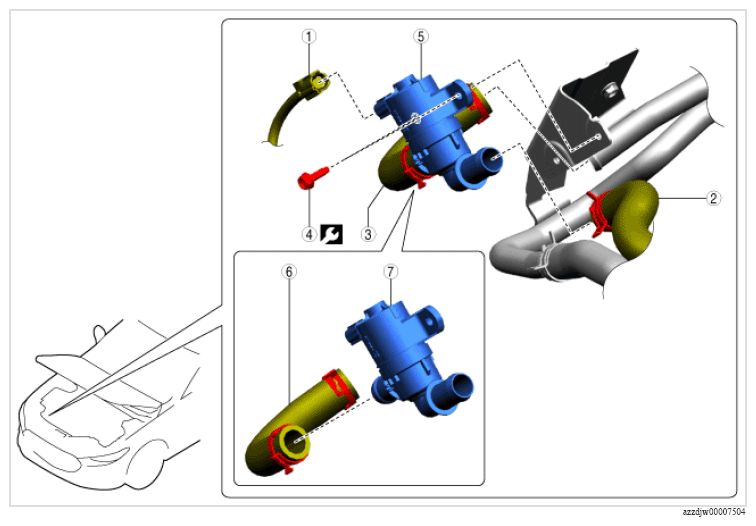

- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATION
| Step |
Part name |
 |
| 1 |
Connector |
- |
| 2 |
Hose |
- |
| 3 |
Hose |
- |
| 4 |
Bolt |
9.0 N.m {92 kgf.cm, 80 in.lbf} |
| 5 |
Coolant switching valve No. 1 assembly |
- |
| 6 |
Hose |
- |
| 7 |
Coolant switching valve No. 1 |
- |
