Remove Engine Coolant Reserve Tank: Notes
WARNING: This page is about a different variant/trim than selected.

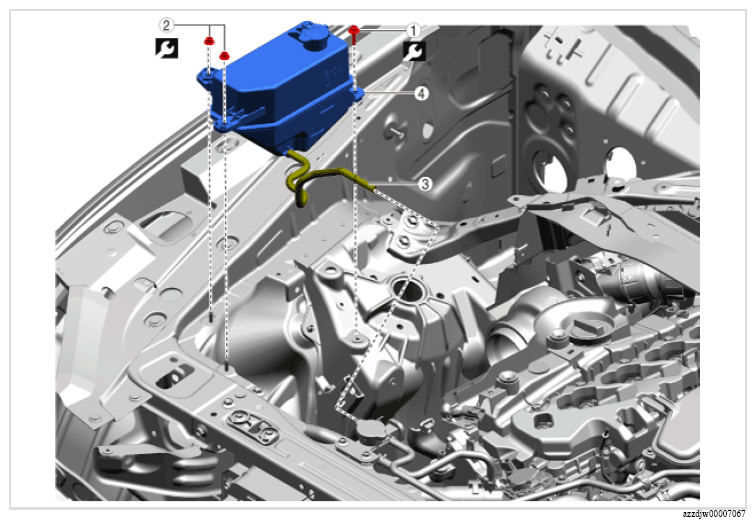

- Remove using the procedure shown in the figure.
TIGHTENING TORQUE SPECIFICATION
| Procedure | Part name | |
|---|---|---|
| 1 | Bolt | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 2 | Nut | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 3 | Hose (See HOSE CONNECTION NOTE ) |
- |
| 4 | Engine coolant reserve tank | - |
