Remove Rear Housing: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

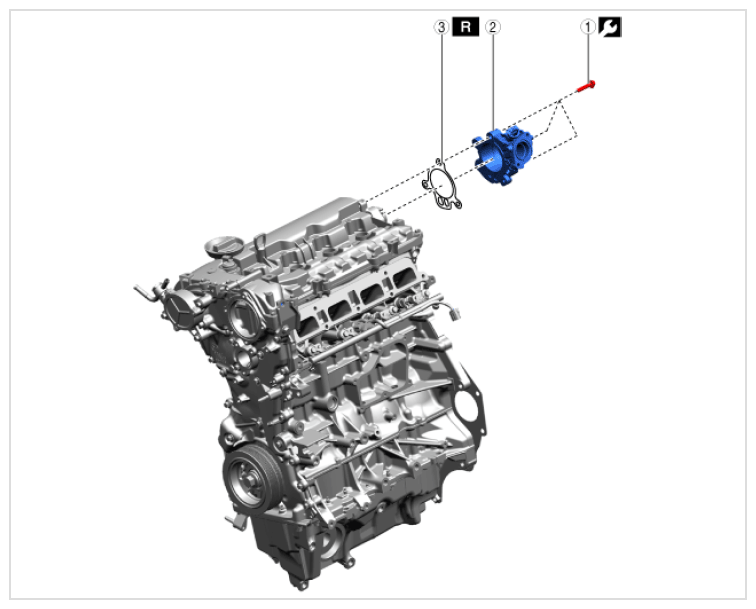

Fig 1: Rear Housing Bolt With Torque Specifications
G16700472Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt - - 9.5 N.m {97 kgf.cm, 84 in.lb}
2 Rear housing assembly
(See PRECAUTIONS WHEN INSTALLING THE REAR HOUSING ASSEMBLY )		 TB1217D - -
3 Gasket
(See PRECAUTIONS WHEN INSTALLING THE REAR HOUSING ASSEMBLY )		 - Replacement part -
