Precautions when installing the rear housing assembly

WARNING: This page is about a different variant/trim than selected.

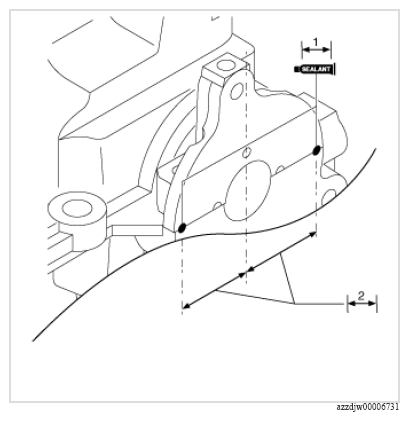

Apply silicone sealant (TB1217D) to the areas shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	Coating amount: ø 3.0-7.0 mm {0.12 - 0.27 in}
	35 mm {1.4 in}
