Remove Oil Cooler: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

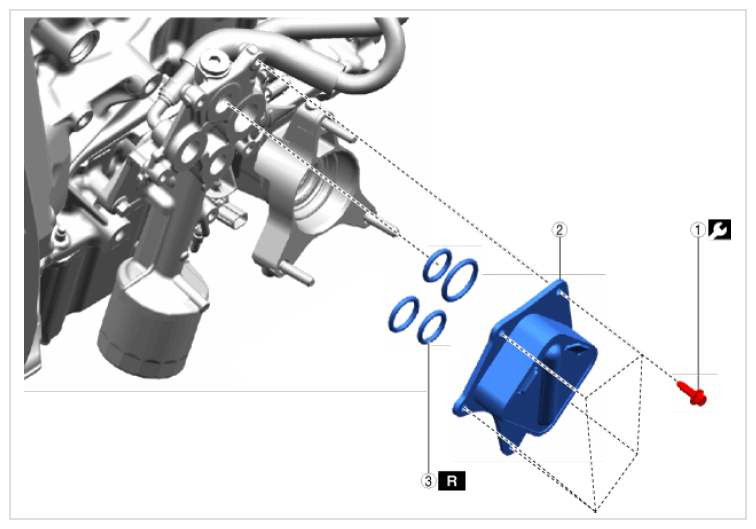

Fig 1: Oil Cooler Bolt With Torque Specifications
G16700475Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt
(See Bolt installation note )		 - 10 N.m {102 kgf.cm, 89 in.lb}
2 Oil cooler - -
3 Gasket Replacement part -
