Bolt installation note

WARNING: This page is about a different variant/trim than selected.
  1. Install the bolts in the order shown in the figure below.

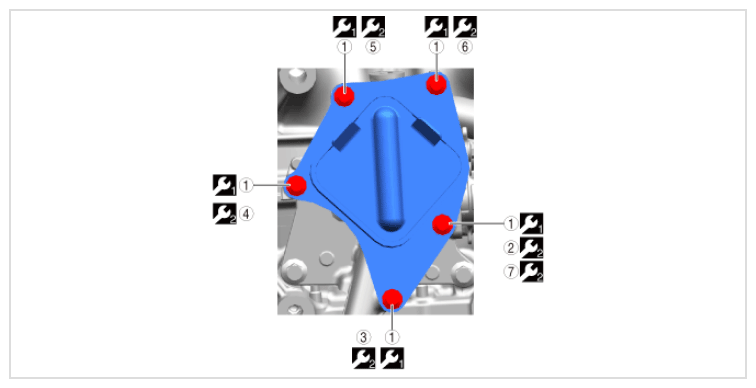

Fig 1: Oil Cooler Bolts Tightening Sequence
G16700476Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Symbol Content
(1) (2)... Servicing procedure
Temporarily tighten
10 N.m {102 kgf.cm, 89 in.lb}
