Remove Engine Oil Temperature Sensor/Engine Oil Pressure Sensor: Notes

NOTE:

• The engine oil temperature sensor and the engine oil pressure sensor cannot be removed as a single unit. If the engine oil temperature sensor or engine oil pressure sensor is replaced, replace the engine oil temperature sensor/engine oil pressure sensor.

1. Remove in the order indicated in the table.

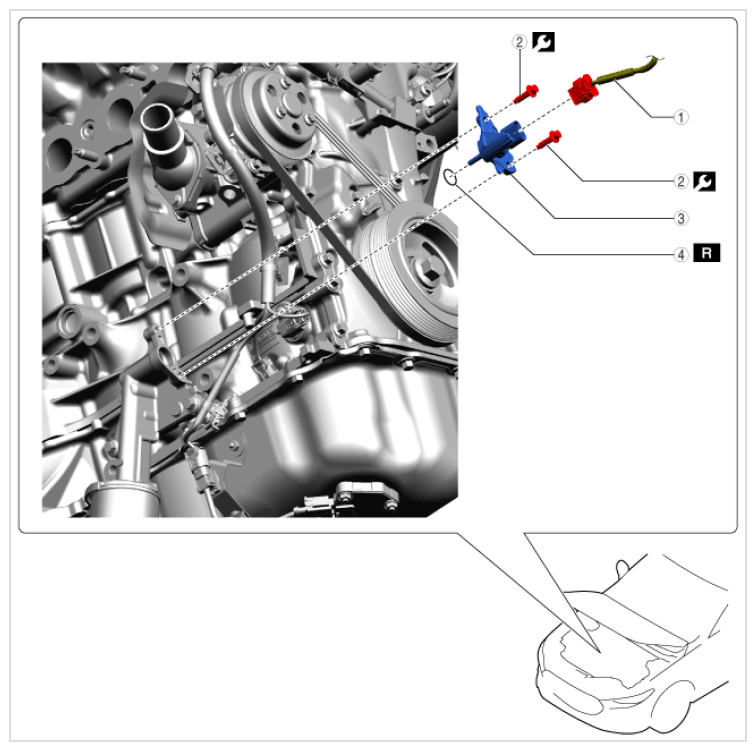

Fig 1: Engine Oil Temperature Sensor/Engine Oil Pressure Sensor Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Connector (See CONNECTOR DISCONNECTION NOTE )	-	-
2	Bolt	-	9.5 N.m {97 kgf.cm, 84 in.lb}
3	Engine oil temperature sensor/engine oil pressure sensor	-	-
4	O-ring	Replacement part	-
