Connector connection note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Do not touch the ECM connector terminal. The terminal is extremely thin and can be damaged by touching it.
  • If the lever is moved with the ECM connector inserted at an angle, the connector itself may be damaged. Verify that the ECM connector is inserted straight.
G16702143Courtesy of MAZDA MOTORS CORP.

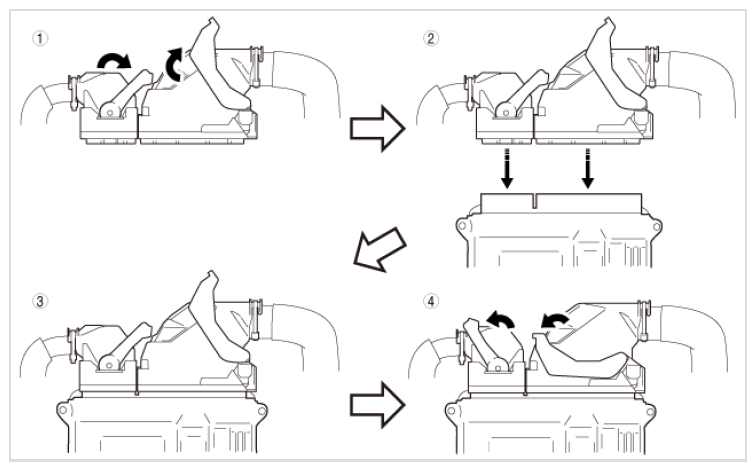

  1. Connect the connector as shown in the figure.
G16704512Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
