Remove Driver's Side Windshield Wiper Arm And Blade: Notes

WARNING: This page is about a different variant/trim than selected.

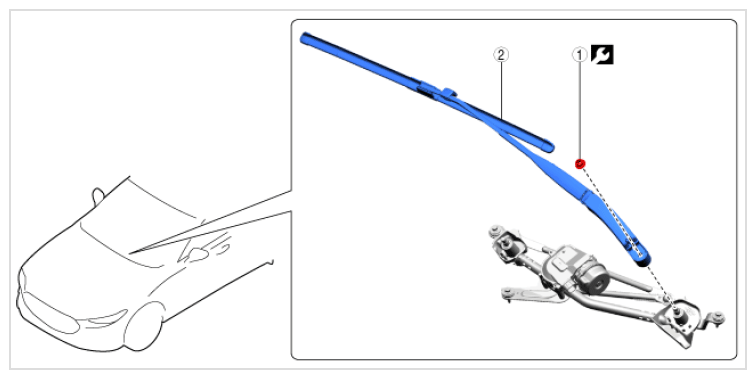

Fig 1: Driver'S Side Windshield Wiper Arm And Blade Or Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Nut	25.5 N.m {2.6 kgf.m, 18.8 ft.lbf}
2	Driver's side windshield wiper arm and blade (See DRIVER'S SIDE WINDSHIELD WIPER ARM AND BLADE INSTALLATION NOTE )	-
