Remove oil pan: Notes
WARNING: This page is about a different variant/trim than selected.

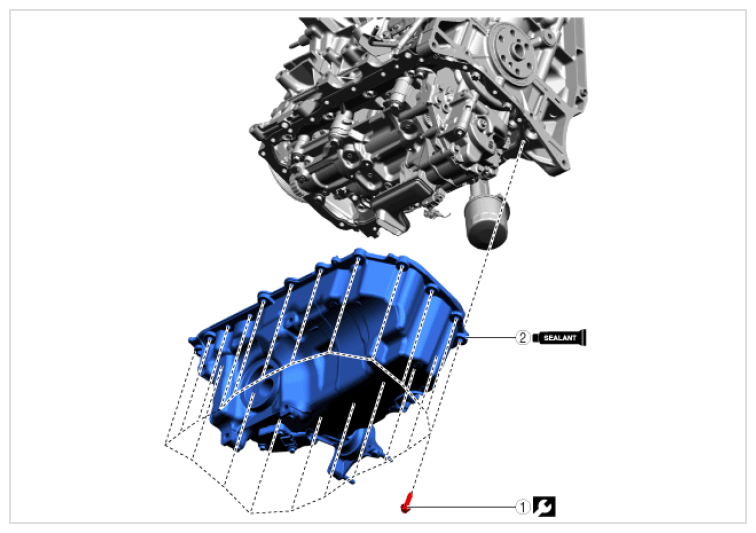

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | ||
|---|---|---|---|
| 1 | Bolt (See Bolt removal note ) (See Bolt Installation Note ) |
- | 23 N.m {2.35 kgf.m, 16.95 ft.lb} |
| 2 | Oil pan (See OIL PAN INSTALLATION NOTE ) |
TB1217D | - |
