Bolt Installation Note

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Remove any silicone sealant which oozes out into an oil pan installation bolt hole. If silicone sealant penetrates an oil pan installation bolt hole, the cylinder block could become damaged.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Silicone sealant
2	Breakage

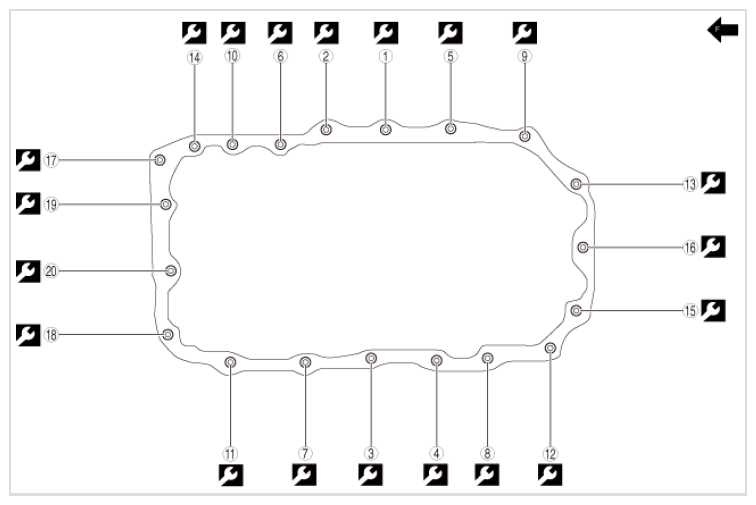

Fig 1: Oil Pan Bolts Tightening Sequence With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Symbol	Content
(1) (2)...	Servicing procedure
	23 N.m {2.35 kgf.m, 16.95 ft.lb}
