Remove Oil Cooler: Notes
WARNING: This page is about a different variant/trim than selected.

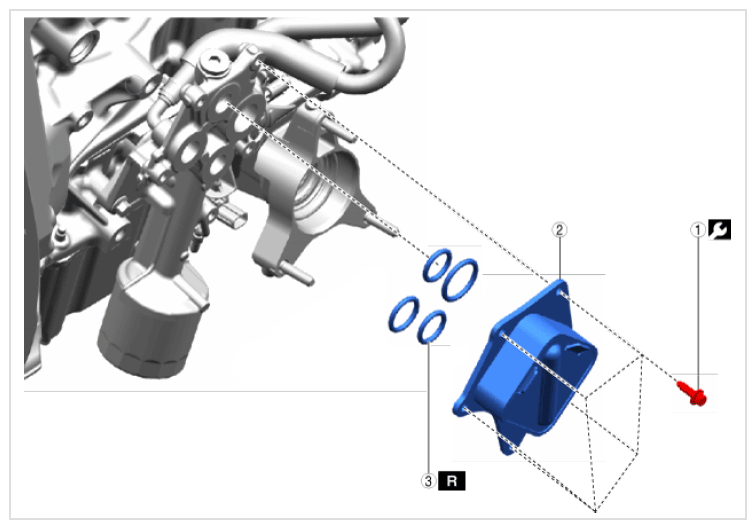

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | ||
|---|---|---|---|
| 1 | Bolt (See Bolt installation note ) |
- | 10 N.m {102 kgf.cm, 89 in.lbf} |
| 2 | Oil cooler | - | - |
| 3 | Gasket | Replacement part | - |
