Remove Oil Strainer: Notes

WARNING: This page is about a different variant/trim than selected.

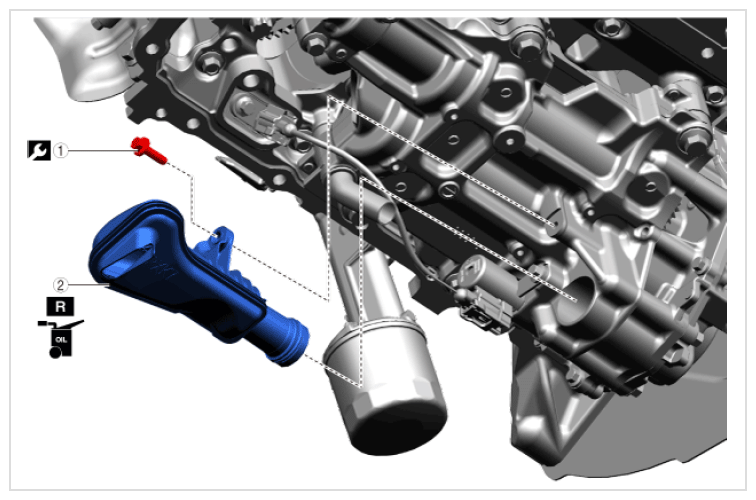

Fig 1: Oil Strainer And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt	-	-	9 N.m {92 kgf.cm, 80 in.lbf}
2	Oil strainer (See OIL STRAINER INSTALLATION NOTE )	Engine oil	Replacement part	-
