Remove A/F (Air/Fuel Ratio) Sensor: Notes

WARNING: This page is about a different variant/trim than selected.

WARNING:

A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

CAUTION:

A hot engine and exhaust system can cause severe burns. Turn off the engine and wait until they are cool before removing the exhaust system.

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

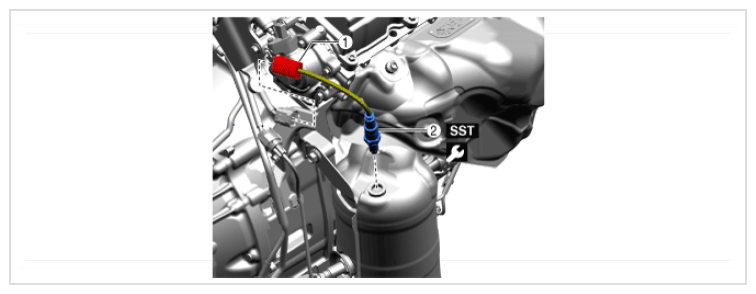

Step	Part name
1	Connector	-	-
2	A/F (air/fuel ratio) sensor (See A/F (AIR/FUEL RATIO) SENSOR REMOVAL NOTE )	49 L018 001	42 N.m {4.3 kgf.m, 31 ft.lbf}
