A/F (air/fuel ratio) sensor removal note

WARNING: This page is about a different variant/trim than selected.

Remove the A/F (air/fuel ratio) sensor using the SST as shown in the figure below.

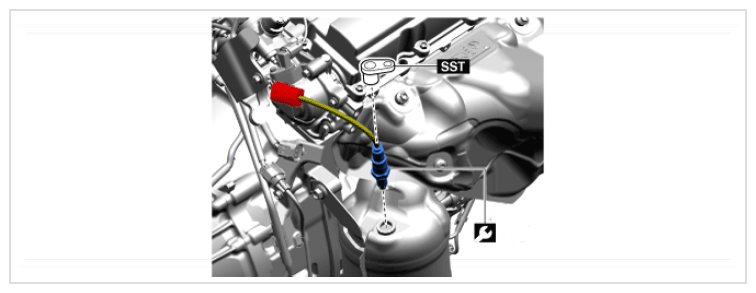

Fig 1: A/F (Air/Fuel Ratio) Sensor With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Symbol	Content
	42 N.m {4.25 kgf.m, 30.85 ft.lbf}
	49 L018 001
