Inspect Refrigerant System Performance: H3T
WARNING: This page is about a different variant/trim than selected.

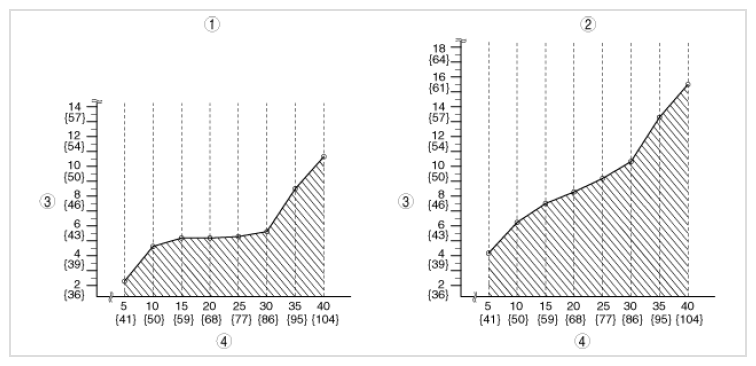

COMPONENT OPERATIONS
| Component no. | Refer to |
|---|---|
| 1 | Center vent |
| 2 | Rear vent |
| 3 | Airflow temperature (°C {°F}) |
| 4 | Ambient temperature (°C {°F}) |
- If it cannot be verified, inspect the refrigerant system according to the symptom troubleshooting procedure. (Refer to [SYMPTOM TROUBLESHOOTING CHART [FULL-AUTO AIR CONDITIONER] ] in the appropriate troubleshooting information )
