Remove Chain Tensioner No. 1: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove using the procedure shown in the figure below.

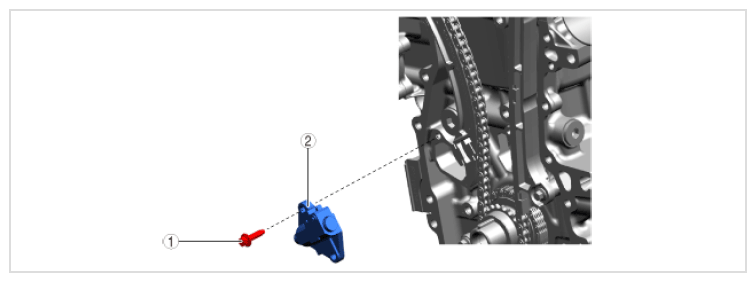

Fig 1: Chain Tensioner No. 1 Bolt With Torque Specifications
G16701975Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Procedure Part name
1 Bolt
(See Bolt removal note )		 9.5 N.m {97 kgf.cm, 84 in.lbf}
2 Chain tensioner No. 1
(See CHAIN TENSIONER INSTALLATION NOTE )		 -
