Remove High Pressure Fuel Pump: Notes
WARNING: This page is about a different variant/trim than selected.

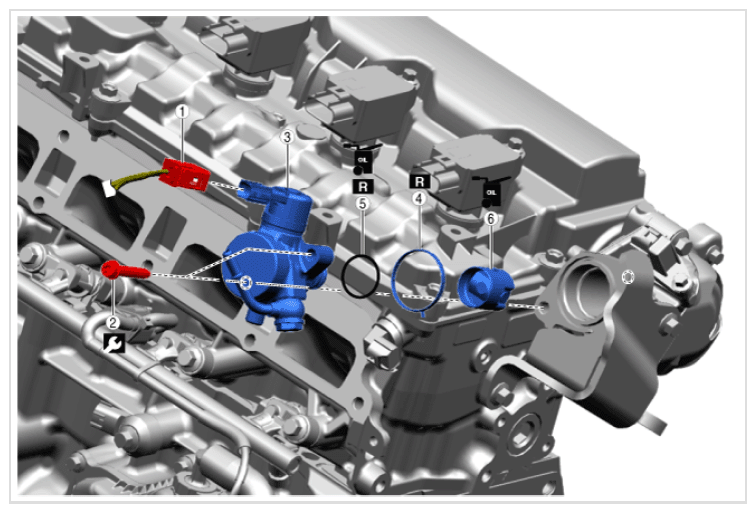

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |||
|---|---|---|---|---|
| 1 | Connector | - | - | - |
| 2 | Bolt | - | - | 22 N.m {2.25 kgf.m, 16.25 ft.lbf} |
| 3 | High pressure fuel pump (See HIGH PRESSURE FUEL PUMP INSTALLATION NOTE ) |
- | - | - |
| 4 | Seal rubber | - | Replacement part | - |
| 5 | O-ring | Engine oil | Replacement part | - |
| 6 | Tension collar | Engine oil | - | - |
