Remove HLA (Hydraulic Lash Adjuster): Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

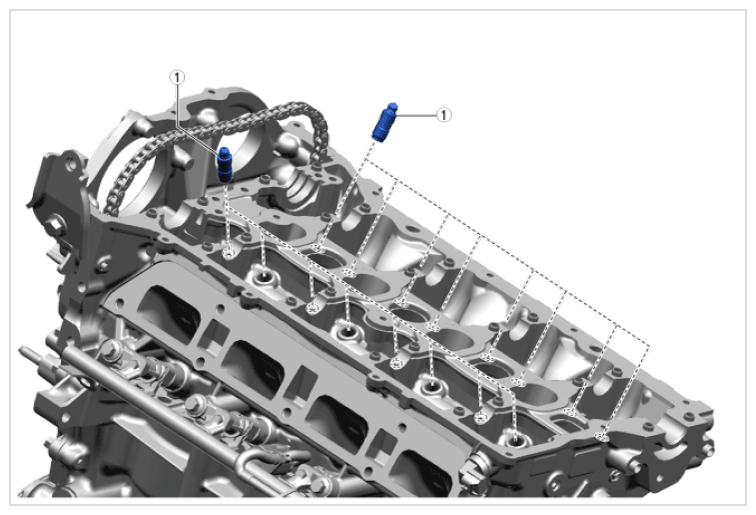

G16699717Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 HLA
(See HLA REMOVAL NOTE )
(See HLA INSTALLATION NOTE )
