Remove Notification and Warning Speaker (Rear): Notes

1. Remove using the procedure shown in the figure below.

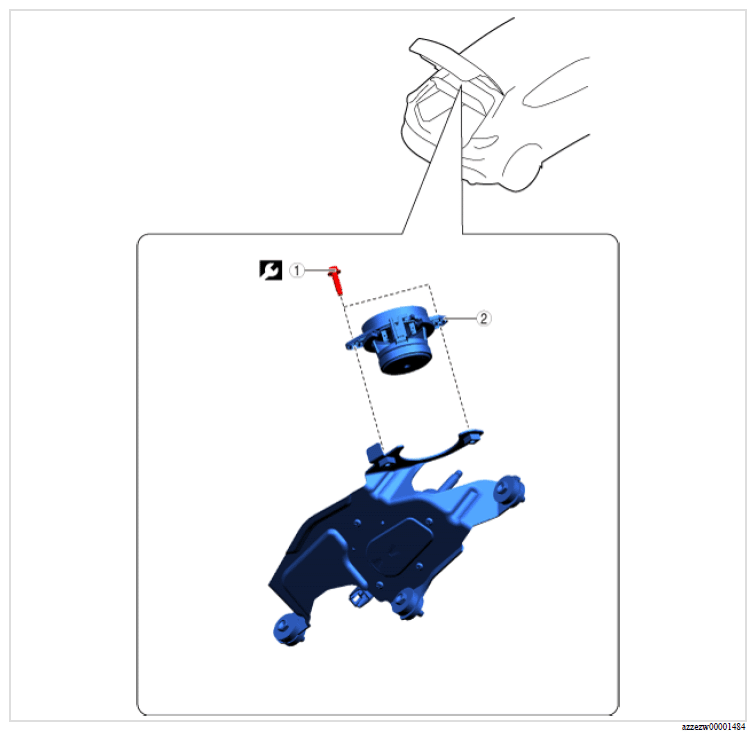

Fig 1: Notification And Warning Speaker And Bolt With Torque Specification (Rear)

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt (See Bolt installation note )	2.5 N.m {25 kgf.cm, 22 in.lb}
2	Notification and warning speaker (rear)	-
