Bolt installation note

  1. Install the bolts as shown in the figure below.

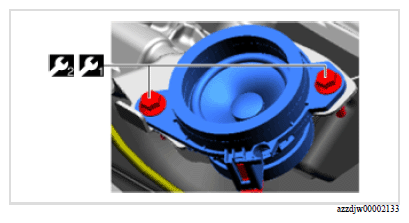

Fig 1: Notification And Warning Speaker Bolts With Torque Specification (Rear)
G16706649Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATION

Symbol Content
Temporarily tighten
2.5 N.m {25 kgf.cm, 22 in.lb}
