Remove Select Lever Knob: Notes

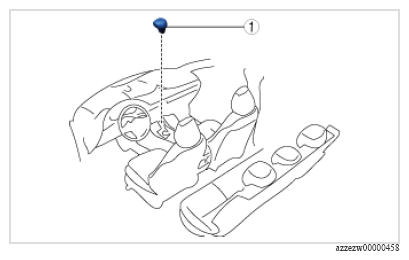

  1. Remove using the procedure shown in the figure below.
G16708777Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Selector lever knob
(See PRECAUTIONS FOR REMOVING THE SELECT LEVER AND KNOB )
(See SELECTOR LEVER KNOB INSTALLATION NOTE )
