Precautions for removing the select lever and knob

To prevent injury, attach protective tape to the tool (width 2 mm {0.08 in} or less, thickness 1 mm {0.04 in} or less), cutting any excess tape with scissors.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	40 mm {1.6 in}

Insert the tool as shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

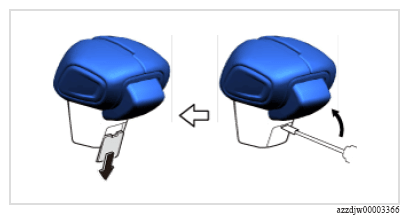

Move the tool in the direction of the arrows as shown in the figure below and remove the cover.

Courtesy of MAZDA MOTORS CORP.

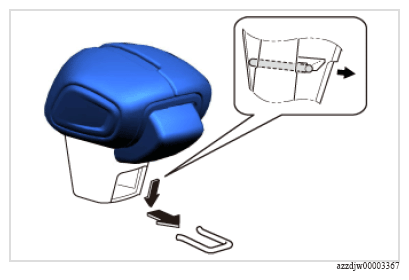

Remove the spring while pushing it down.

Courtesy of MAZDA MOTORS CORP.
Remove the selector level knob.
