Remove Center Speaker Grille: Notes

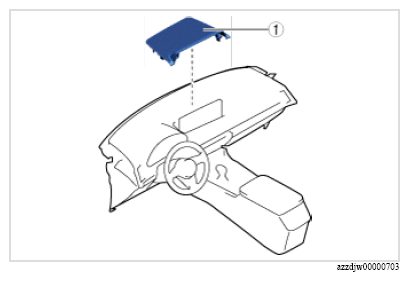

  1. Remove using the procedure shown in the figure below.
G16710315Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Center speaker grille
(See Center speaker grille removal note )
