Center speaker grille removal note
CAUTION:
- To prevent soiling of parts, keep the protective tape away from places with high temperature and peel it off immediately after servicing.

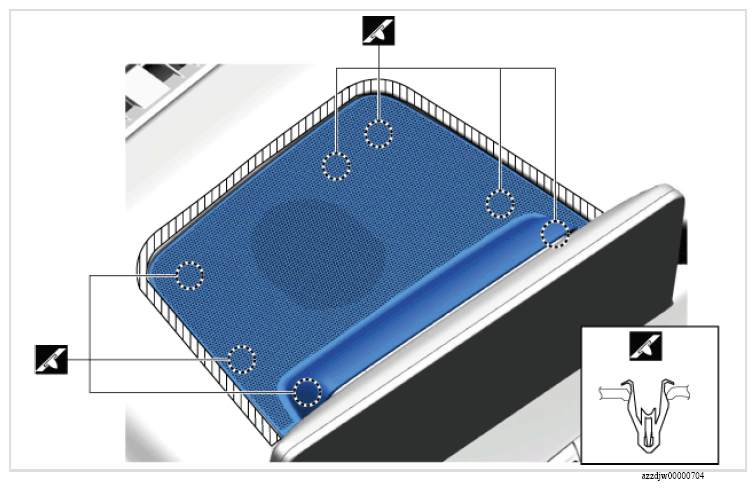

- Remove the center speaker grille as shown in the figure below.
 Courtesy of MAZDA MOTORS CORP.
|
SYMBOL AND CONTENT DESCRIPTION
| Symbol |
Content |
 |
Protective tape attachment positions |
