Exhaust System Insulator Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the floor under cover No. 1 (RH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

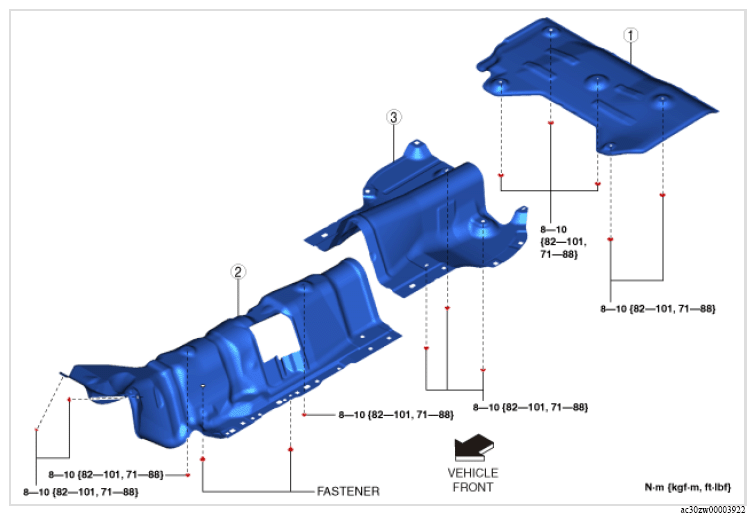

Fig 1: Exhaust System Insulator Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

EXHAUST SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Insulator (middle) (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .)
2	Insulator (front) (See INSULATOR (MIDDLE) INSTALLATION NOTE .)
3	Insulator (rear) (See EXHAUST SYSTEM INSULATOR REMOVAL/INSTALLATION .) (See INSULATOR (FRONT) INSTALLATION NOTE .)
