Insulator (middle) installation note

WARNING: This page is about a different variant/trim than selected.

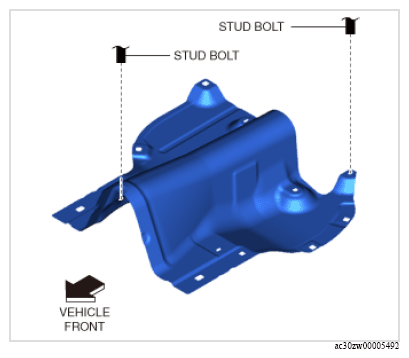

  1. Align the stud bolts shown in the figure with the insulator (middle) and install.
    G16372338Courtesy of MAZDA MOTORS CORP.
  2. Tighten the nuts to the specified torque.
