EGR PIPE No. 2: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION (VIN Y) .)
Remove the EGR valve. (See EGR VALVE REMOVAL/INSTALLATION (VIN Y) .)
Remove the exhaust gas pressure sensor. (See EXHAUST GAS PRESSURE SENSOR REMOVAL/INSTALLATION (VIN Y) .)
Remove the clips and bolts shown in the figure and set the wiring harness bracket aside.

Fig 1: Wiring Harness Bracket Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolt shown in the figure and set the water hose bracket aside.

Fig 2: Water Hose Bracket Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.

Remove in the order indicated in the table.

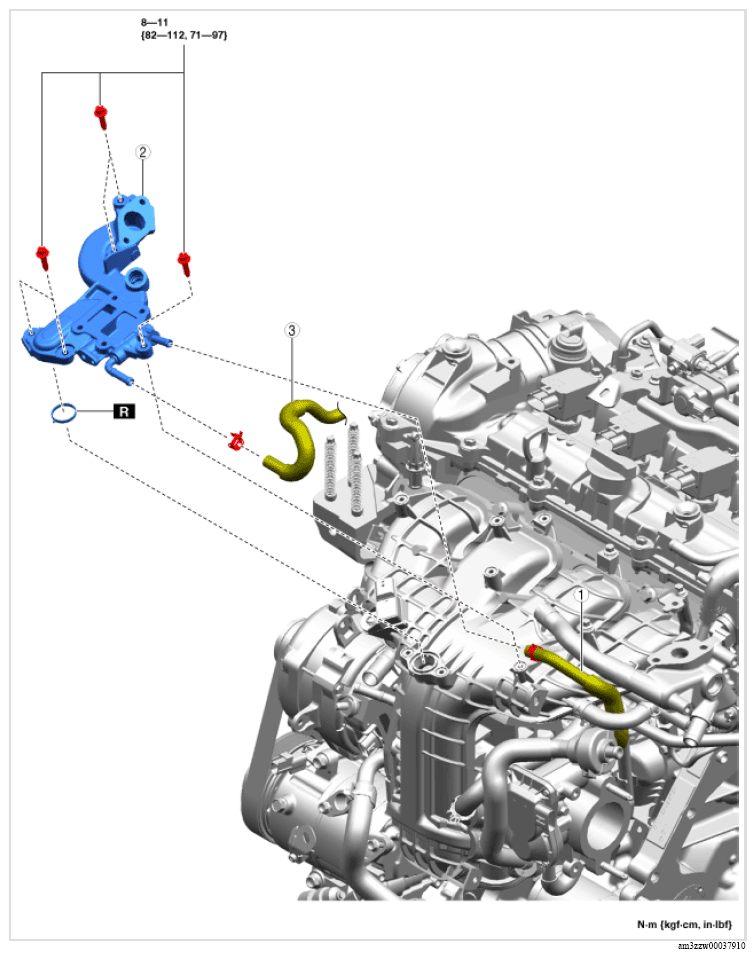

Fig 3: EGR Pipe Components Location With Torque Specification

Courtesy of MAZDA MOTORS CORP.

EGR PIPE COMPONENT OPERATIONS

Component No.	Refer to
1	Water hose No. 3 (See WATER HOSE NO. 3 INSTALLATION NOTE .)
2	EGR pipe No. 2
3	Water hose No. 4 (See WATER HOSE NO. 4 INSTALLATION NOTE .)
