EGR Valve Removal/Installation (VIN Y)

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)
3. Remove in the order indicated in the table.

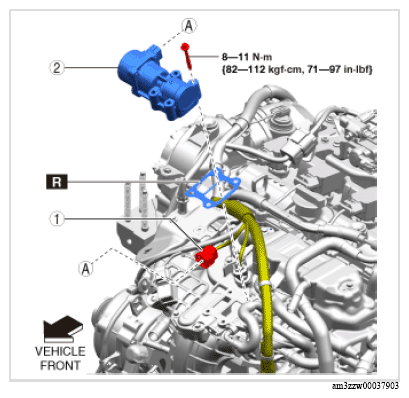

   Fig 1: EGR Valve Components Location With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
   EGR VALVE COMPONENT OPERATIONS



   Component No.	Refer to
   1	EGR valve connector
   2	EGR valve

4. Install in the reverse order of removal.
