U.S.A. and CANADA (Charcoal canister (sub)) : Notes
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the rear tire (RH). (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Remove the rear splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)

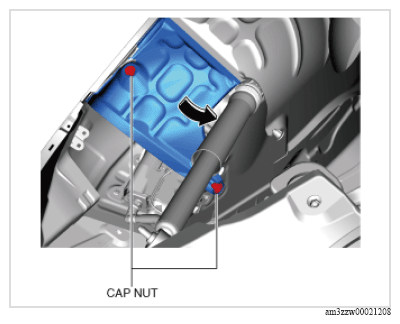

- Remove the cap nuts. (See MUDGUARD REMOVAL/INSTALLATION
.)
- Set the rear mudguard (RH) aside. (See MUDGUARD REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

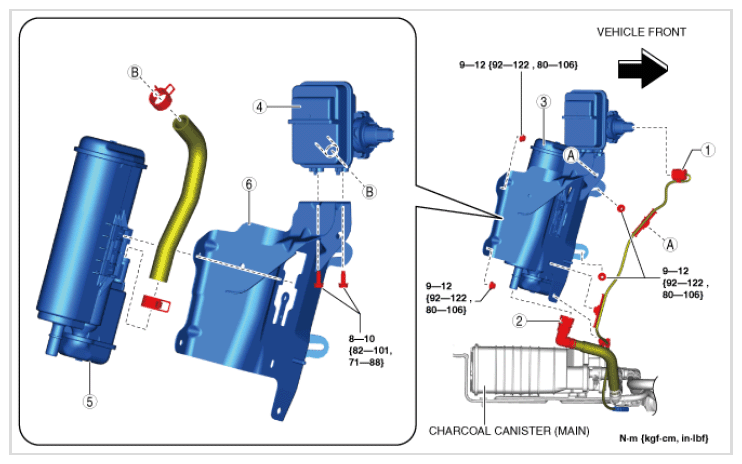

Fig 1: Charcoal Canister Components Location With Torque Specification - U.S.A. And Canada (Charcoal Canister; Sub)
CHARCOAL CANISTER COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | CV solenoid valve connector |
| 2 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION (VIN Y) .) |
| 3 | Charcoal canister (sub) component |
| 4 | Air filter component |
| 5 | Charcoal canister (sub) (See CHARCOAL CANISTER (SUB) REMOVAL NOTE .) (See CHARCOAL CANISTER (SUB) INSTALLATION NOTE .) |
| 6 | Charcoal canister (sub) bracket |
