Charcoal canister (sub) installation note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily install the charcoal canister (sub) component to the vehicle-side stud bolt.

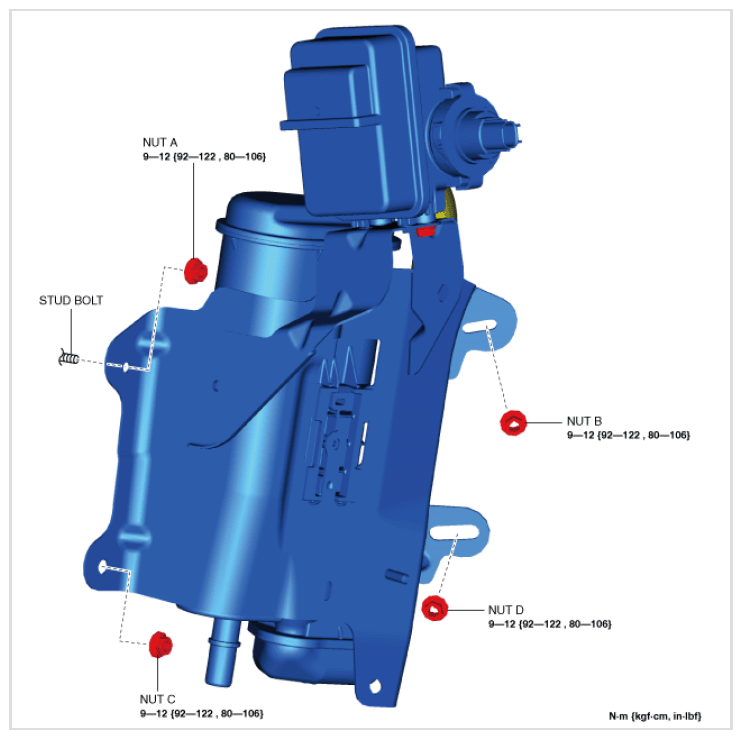

    Fig 1: Charcoal Canister Nuts With Torque Specification (Sub)
    G16372496Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten nut A.
  3. Temporarily tighten nut B.
  4. Temporarily tighten nut C.
  5. Temporarily tighten nut D.
  6. Completely tighten nuts A and C.
  7. Completely tighten nuts B and D.
