U.S.A. and CANADA (Charcoal canister (main)) : Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
Remove the insulator (rear). (See EXHAUST SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

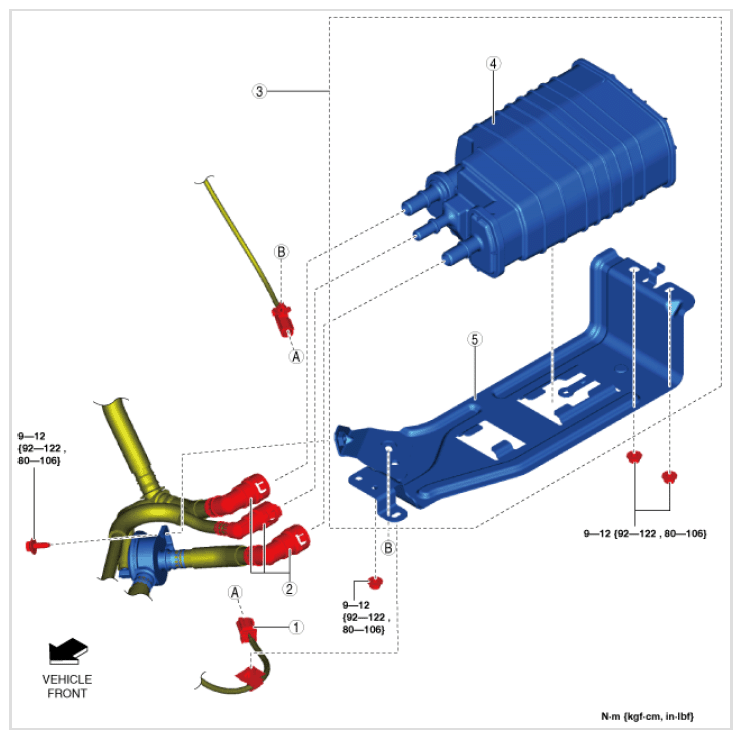

Fig 1: Charcoal Canister Components Location With Torque Specification - U.S.A. And Canada (Charcoal Canister; Main)

Courtesy of MAZDA MOTORS CORP.

CHARCOAL CANISTER COMPONENT OPERATIONS

Component No.	Refer to
1	Wiring harness connector
2	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION (VIN Y) .)
3	Charcoal canister (main) component (See CHARCOAL CANISTER (MAIN) COMPONENT INSTALLATION NOTE .)
4	Charcoal canister (main) (See CHARCOAL CANISTER (MAIN) REMOVAL NOTE .)
5	Charcoal canister (main) bracket
