Charcoal canister (main) component installation note

WARNING: This page is about a different variant/trim than selected.

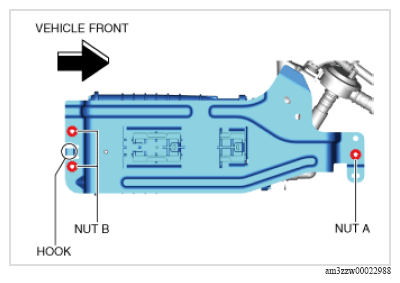

  1. Install the charcoal canister (main) bracket hook into the hole on the body.
    G16372492Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten nut A.
  3. Temporarily tighten nuts B.
  4. Completely tighten nut A.
  5. Completely tighten nuts B.
