Water-Cooled Charge Air Cooler Removal/Installation (VIN Y): Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

Gasket
Quantity: 4
Location of use: Water-cooled charge air cooler

Oil and Chemical Type

Engine oil
Type: Recommended oil

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the intake manifold and water-cooled charge air cooler as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (VIN Y) .)
Remove the water-cooled charge air cooler from the intake manifold.

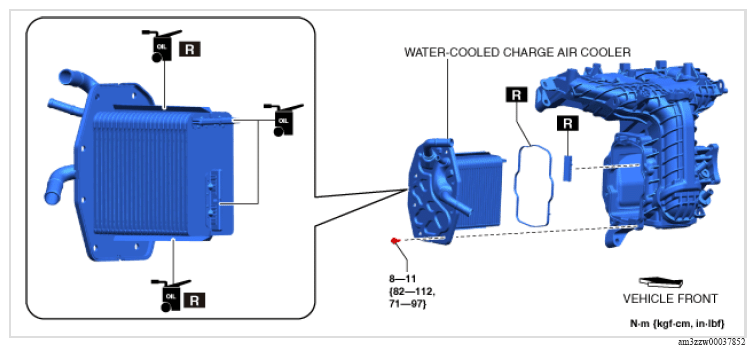

Fig 1: Water-Cooled Charge Air Cooler Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal. (See WATER-COOLED CHARGE AIR COOLER INSTALLATION NOTE .)
