Water-cooled Charge Air Cooler Installation Note

WARNING: This page is about a different variant/trim than selected.

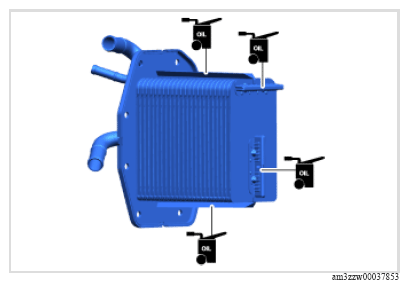

Apply engine oil to position shown in figure.

Courtesy of MAZDA MOTORS CORP.

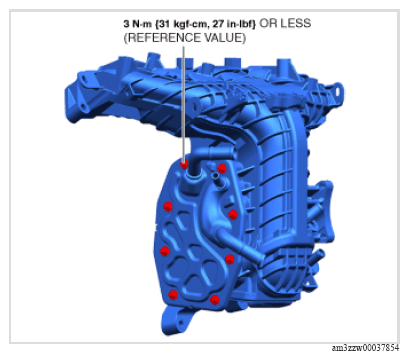

Temporarily tighten the bolts shown in the figure by hand.

Fig 1: Water-Cooled Charge Air Cooler Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts shown in the figure.

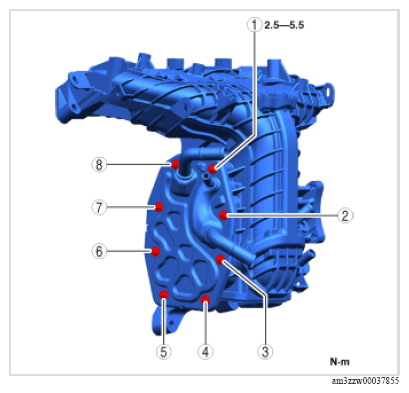

Fig 2: Water-Cooled Charge Air Cooler Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

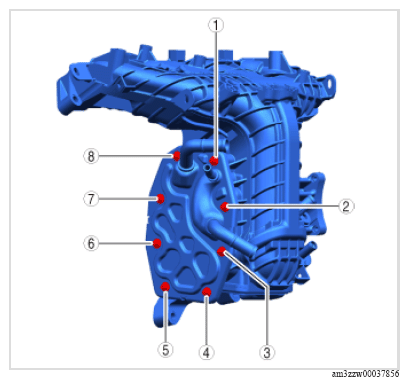

Tighten the bolts shown in the figure.

Fig 3: Water-Cooled Charge Air Cooler Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
