Ignition Coil/Ion Sensor Removal/Installation (VIN Y): Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN Y) .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

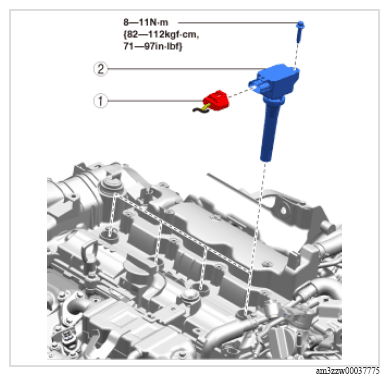

Fig 1: Ignition Coil/Ion Sensor Components Location With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

IGNITION COIL/ION SENSOR COMPONENT OPERATIONS

Component No.	Refer to
1	Connector
2	Ignition coil/ion sensor (See IGNITION COIL/ION SENSOR REMOVAL NOTE .)
