Ignition coil/ion sensor Removal Note

WARNING: This page is about a different variant/trim than selected.

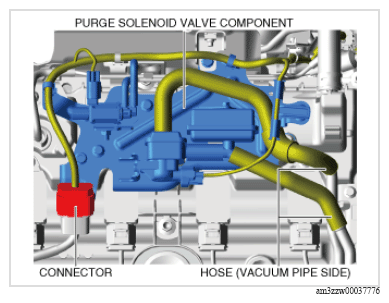

Disconnect the connector and hoses shown in the figure.

Courtesy of MAZDA MOTORS CORP.

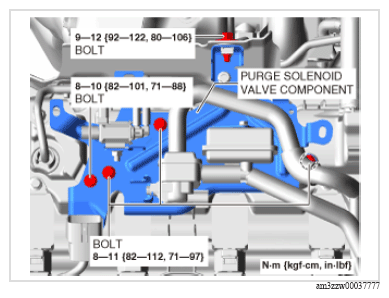

Remove the bolts shown in the figure.

Fig 1: Purge Solenoid Valve Component Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

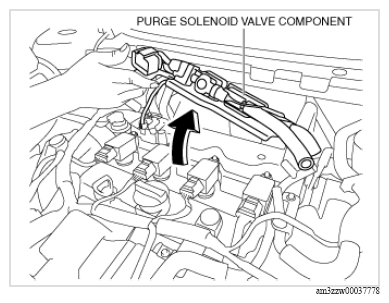

Set the purge solenoid valve component aside as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Remove the ignition coil/ion sensors.
