Cowl Panel Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Windshield wiper motor (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
    4. Side cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)

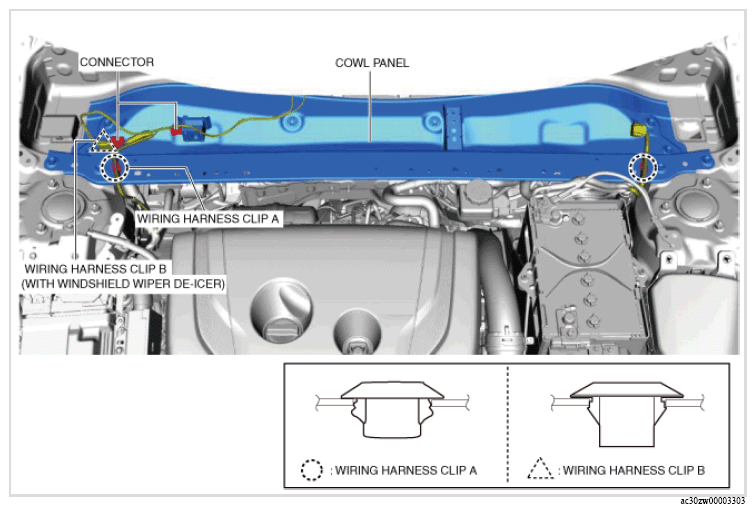

  3. Disconnect the connectors.
    G16375914Courtesy of MAZDA MOTORS CORP.
  4. Remove wiring harness clips A.
  5. Remove wiring harness clip B. (with windshield wiper de-icer)

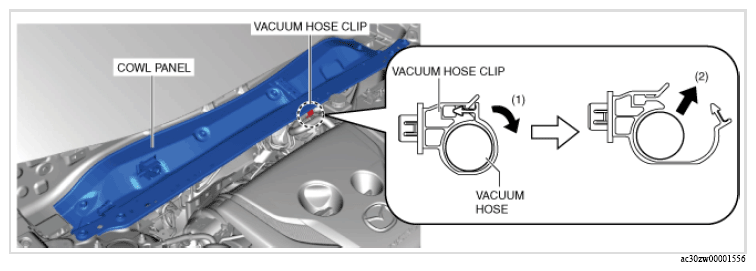

  6. Open the vacuum hose clip in the direction of arrow (1) shown in the figure and remove the vacuum hose in the direction of arrow (2).
    G16375915Courtesy of MAZDA MOTORS CORP.

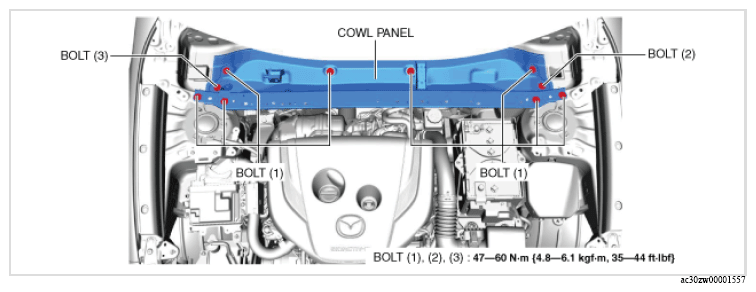

  7. Remove the bolts shown in the figure in the order of (1), (2) and (3).
    Fig 1: Cowl Panel Bolts Loosening Sequence
    G16375916Courtesy of MAZDA MOTORS CORP.
  8. Remove the cowl panel.
    NOTE:
  9. Install in the reverse order of removal.
