Rear Door Speaker Removal/Installation

CAUTION:

If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

NOTE:

For 6-speaker specification vehicles, only the speaker frame is equipped to the rear door speaker installation position.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

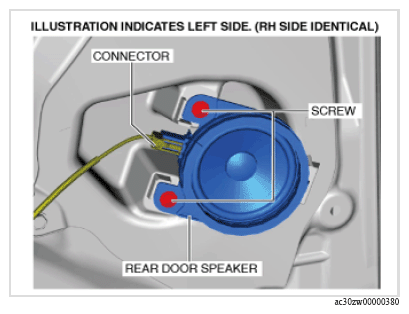

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

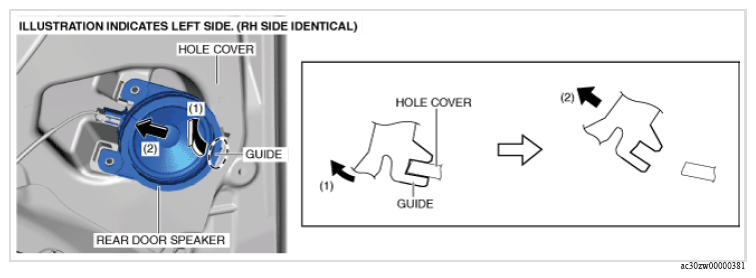

Move the rear door speaker in the direction of the arrow in the order of (1), (2) while detaching the guide.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
