Rear Door Trim Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)

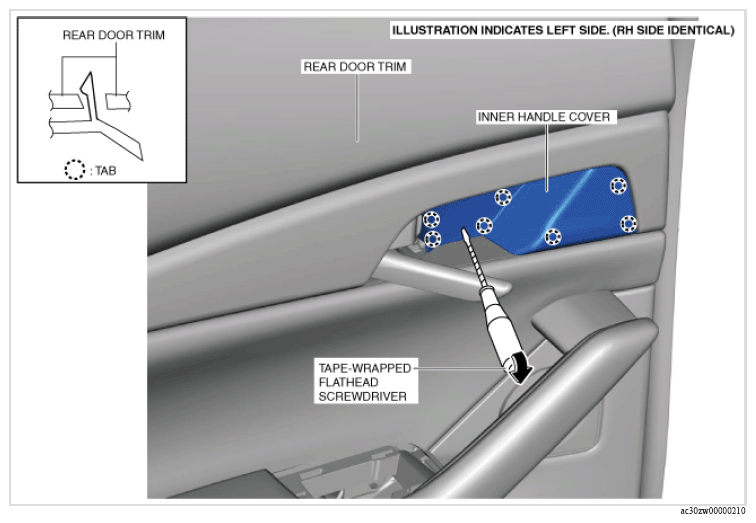

Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow and remove the inner handle cover while detaching the tabs.

Courtesy of MAZDA MOTORS CORP.

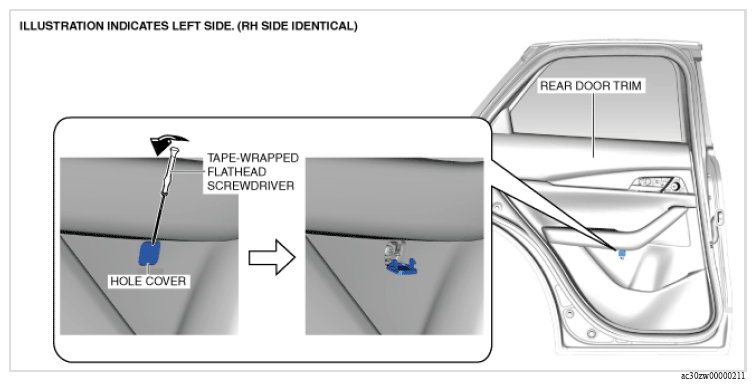

Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow and remove the hole cover.

Courtesy of MAZDA MOTORS CORP.

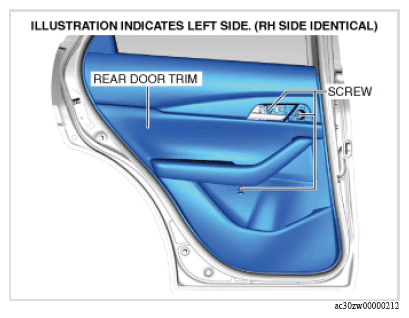

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

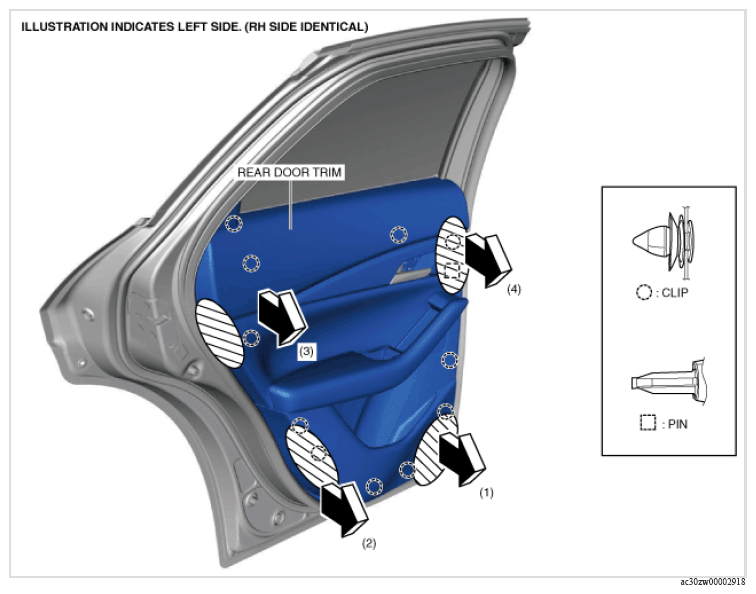

Hold each shaded area and pull the rear door trim in the order of arrows (1), (2), (3), and (4), and remove it while detaching the clips and pin.

Courtesy of MAZDA MOTORS CORP.

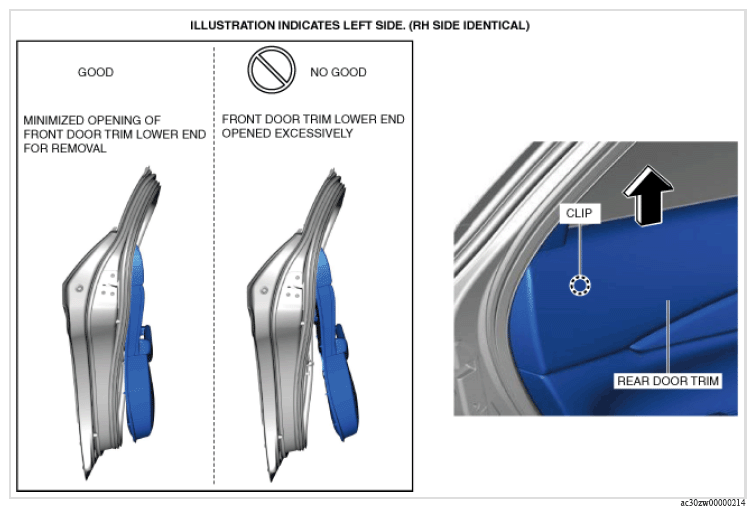

Lift up the rear door trim in the direction of the arrow shown in the figure being careful not to open the lower end of the rear door trim excessively, and remove the rear door trim from the clip.

Courtesy of MAZDA MOTORS CORP.
Remove the rear door trim.

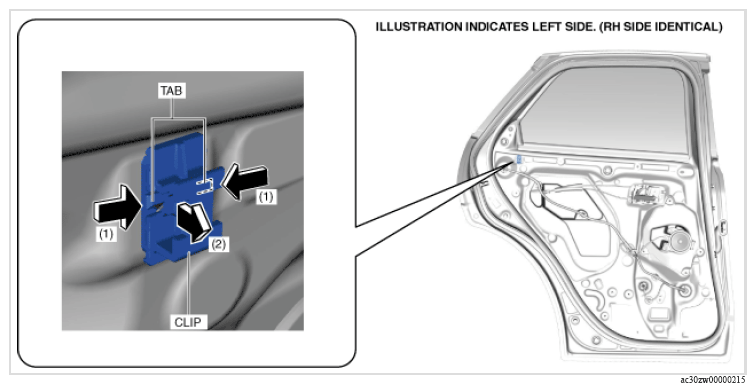

While pressing the tabs of the clip in the directions of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to remove the clip from the front door.

Courtesy of MAZDA MOTORS CORP.

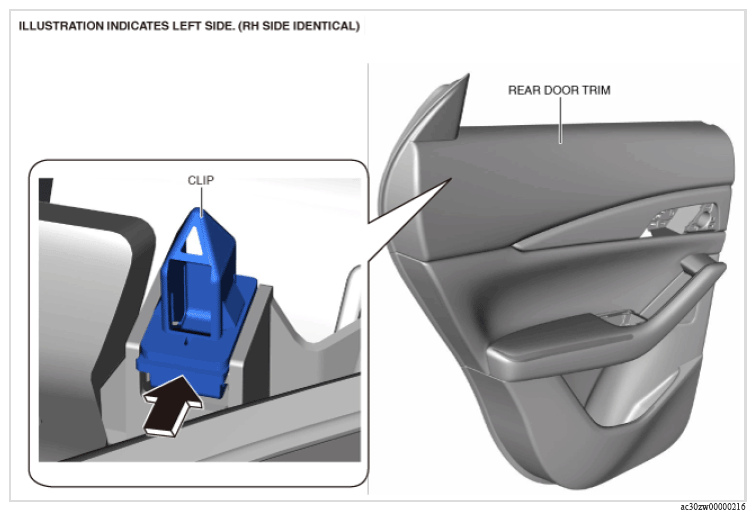

Install the clip removed in Step 9 to the rear door trim.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
