Intake-Air System Location Index

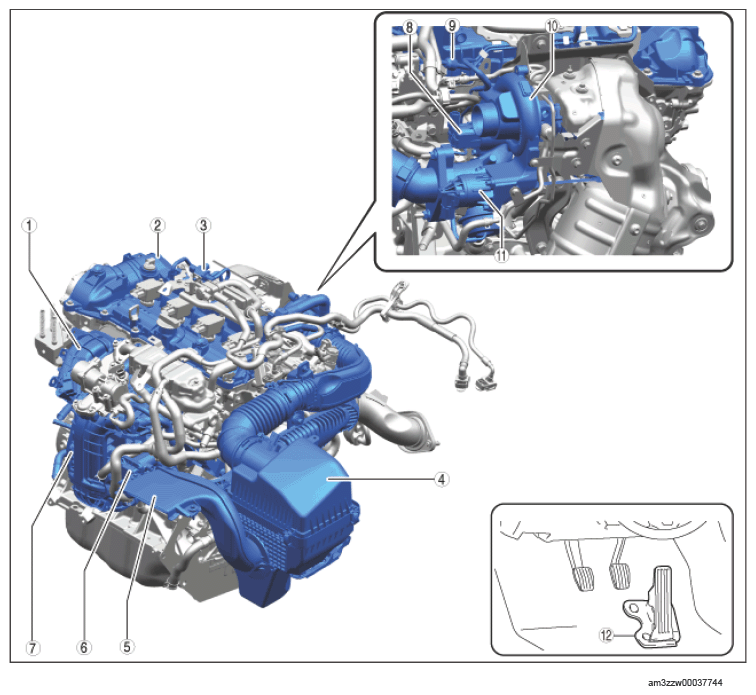

Fig 1: Intake-Air System Components Location

Courtesy of MAZDA MOTORS CORP.

INTAKE-AIR SYSTEM COMPONENT OPERATIONS

Component no.	Refer to
1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G 2.5T] .)
2	Cylinder head cover (built-in vacuum chamber) (See VACUUM CHAMBER INSPECTION [SKYACTIV-G 2.5T] .) (See VACUUM CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
3	Three way solenoid valve (See THREE WAY SOLENOID VALVE INSPECTION [SKYACTIV-G 2.5T] .) (See THREE WAY SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
4	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G 2.5T] .)
5	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
6	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See THROTTLE BODY INSPECTION [SKYACTIV-G 2.5T] .)
7	Charge air cooler (See WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See WATER-COOLED CHARGE AIR COOLER INSPECTION [SKYACTIV-G 2.5T] .)
8	Air bypass valve (See AIR BYPASS VALVE INSPECTION [SKYACTIV-G 2.5T] .) (See AIR BYPASS VALVE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
9	Check valve (intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION [SKYACTIV-G 2.5T] .)
10	Dynamic pressure turbo (See DYNAMIC PRESSURE TURBO REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .) (See DYNAMIC PRESSURE TURBO INSPECTION [SKYACTIV-G 2.5T] .)
11	Wastegate valve actuator (See WASTEGATE VALVE ACTUATOR INSPECTION [SKYACTIV-G 2.5T] .) (See WASTEGATE VALVE ACTUATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
12	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
