Vacuum Chamber Inspection
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)

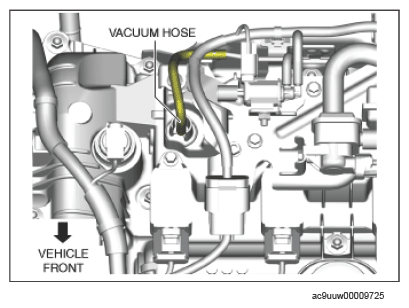

- Disconnect the vacuum hose from the cylinder head cover.

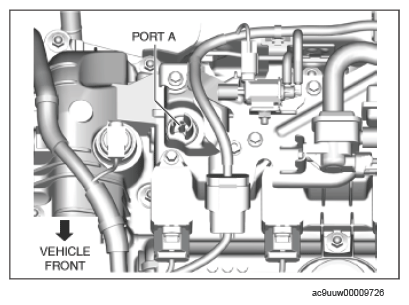

- Apply negative pressure (-94 kPa {-705 mmHg, -28 inHg}) on the port A for one minute to check for the leakage of negative pressure.
- If there is air leakage, replace the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [SKYACTIV-G 2.5T] .)
